DAC60516 Datasheet, Dac, Texas Instruments

DAC60516 Features

  • Dac
  • Performance:
      – INL: ±1LSB maximum at 12-bit resolution
      – TUE: ±0.15% of FSR maximum
  • Integrated 2.5V precision internal reference

PDF File Details

Part number:

DAC60516

Manufacturer:

Texas Instruments ↗

File Size:

1.76MB

Download:

📄 Datasheet

Description:

Voltage-output dac. The 12-bit DAC60516 is a low-power, 16-channel, buffered voltage-output digital-to-analog converter (DAC). The DAC60516 includes a 2

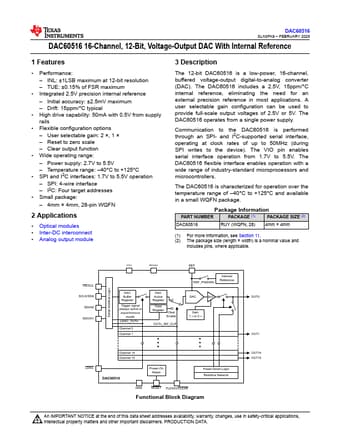

Datasheet Preview: DAC60516 📥 Download PDF (1.76MB)
Page 2 of DAC60516 Page 3 of DAC60516

DAC60516 Application

  • Applications
  • Optical modules
  • Inter-DC interconnect
  • Analog output module 3 Description The 12-bit DAC60516 is a low-p
