DAC60502, DAC80502 - Voltage-Output DAC

Texas Instruments

DAC60502 Datasheet Preview — This datasheet PDF includes multiple part numbers: DAC60502, DAC80502. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	DAC60502, DAC80502
Manufacturer	Texas Instruments ↗
File Size	2.35 MB
Description	Voltage-Output DAC
Datasheet	DAC80502-etcTI.pdf
Note	This datasheet PDF includes multiple part numbers: DAC60502, DAC80502. Please refer to the document for exact specifications by model.

DAC60502 Product details

Description

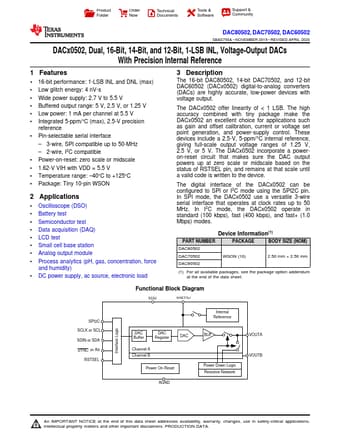

The 16-bit DAC80502, 14-bit DAC70502, and 12-bit DAC60502 (DACx0502) digital-to-analog converters (DACs) are highly accurate, low-power devices with voltage output.

Features

1 16-bit performance: 1-LSB INL and DNL (max).
Low glitch energy: 4 nV-s.
Wide power supply: 2.7 V to 5.5 V.
Buffered output range: 5 V, 2.5 V, or 1.25 V.
Low power: 1 mA per channel at 5.5 V.
Integrated 5-ppm/˚C (max), 2.5-V precision reference.
Pin-selectable serial interface.
3-wire, SPI compatible up to 50-MHz.
2-wire, I2C compatible.
Power-on-reset: zero scale or midscale.
1.62-V VIH with VDD.
