DLP6500 - DMD

Texas Instruments

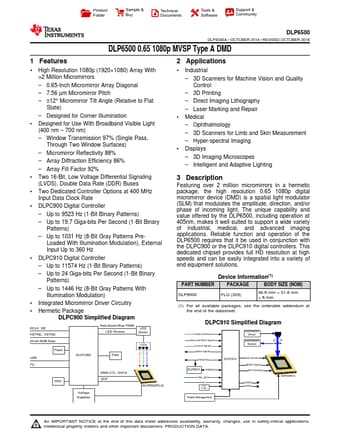

DLP6500 Datasheet Preview — Preview of DLP6500 PDF

Datasheet Details

Part number	DLP6500
Manufacturer	Texas Instruments ↗
File Size	673.56 KB
Description	DMD
Datasheet	DLP6500-etcTI.pdf

DLP6500 Product details

Description

Featuring over 2 million micromirrors in a hermetic package, the high resolution 0.65 1080p digital micromirror device (DMD) is a spatial light modulator (SLM) that modulates the amplitude, direction, and/or phase of incoming light.

Features

1 High Resolution 1080p (1920×1080) Array With >2 Million Micromirrors.
0.65-Inch Micromirror Array Diagonal.
7.56 µm Micromirror Pitch.
±12° Micromirror Tilt Angle (Relative to Flat State).
Designed for Corner Illumination.
Designed for Use With Broadband Visible Light (400 nm.
700 nm).
Window Transmission 97% (Single Pass, Through Two Window Surfaces).
Micromirror Reflectivity 88%.
Array Diffract.
