DLP650LNIR

0.65 NIR WXGA S450 DMD

DLP650LNIR Features

* 1 1280 × 800 (WXGA) Array with >1 Million Micromirrors

* 10.8 µm Micromirror Pitch

* ±12° Micromirror Tilt Angle (Relative to Flat State)

* 0.65-Inch Diagonal Array Designed for Corner Illumination

* 0.5 °C/W Thermal Resistance High Efficiency Package

DLP650LNIR General Description

The DLP650LNIR digital micromirror device (DMD) operates as a spatial light modulator (SLM) to steer near-infrared (NIR) light and generate high speed patterns for advanced imaging in industrial equipment. The thermally efficient package allows customers to combine the DMD with high-power NIR laser .

DLP650LNIR Datasheet (1.09 MB)

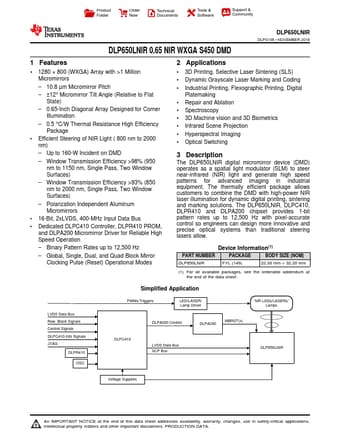

Preview of DLP650LNIR PDF

Datasheet Details

Part number:

DLP650LNIR

Manufacturer:

Texas Instruments ↗

File Size:

1.09 MB

Description:

0.65 nir wxga s450 dmd.
Product Folder Order Now Technical Documents Tools & Software Support & Community DLP650LNIR 0.65 NIR WXGA S450 DMD DLP650LNIR DLPS136

*.
