DP83TD510E

Ultra Low Power 802.3cg 10Base-T1L 10M Single Pair Ethernet PHY

DP83TD510E Features

* Long cable reach

* 2000 meters+ with 1-V p2p

* 2000 meters+ with 2.4-V p2p

* Ultra-low power

* 38 mW for 1-V p2p mode

* 82 mW for 2.4-V p2p mode

* Compliant to IEEE 802.3cg 10Base-T1L

* IEC 61000-4-4 EFT ±4 KV at 5 KHz, 100 KHz

DP83TD510E General Description

The DP83TD510E is an ultra-low power Ethernet physical layer transceiver compliant with the IEEE 802.3cg 10Base-T1L specification. The PHY has very low noise coupled receiver architecture enabling long cable reach and very low power dissipation. The DP83TD510E has external MDI termination to suppor.

DP83TD510E Datasheet (2.84 MB)

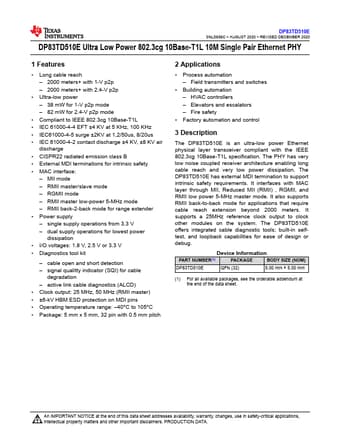

Preview of DP83TD510E PDF

Datasheet Details

Part number:

DP83TD510E

Manufacturer:

Texas Instruments ↗

File Size:

2.84 MB

Description:

Ultra low power 802.3cg 10base-t1l 10m single pair ethernet phy.
