DP83TC811R-Q1 Datasheet - Texas Instruments

DP83TC811R-Q1 100BASE-T1 Automotive Ethernet Physical Layer Transceiver

The DP83TC811R-Q1 device is an IEEE 802.3bwcompliant automotive PHYTER™ Ethernet physical layer transceiver. It provides all physical layer functions needed to transmit and receive data over unshielded single twisted-pair cables. The device provides xMII flexibility with support for standard MII, RM.

DP83TC811R-Q1 Features

* 1 100BASE-T1

* IEEE 802.3bw Compliant

* OPEN Alliance Qualified

* Interoperable With BroadR-Reach and 100BASE-T1 PHYs

* AEC-Q100 Qualified for Automotive Applications:

* Device Temperature Grade 1:

* 40°C to +125 °C Ambient Operating Temperatur

DP83TC811R-Q1-etcTI.pdf

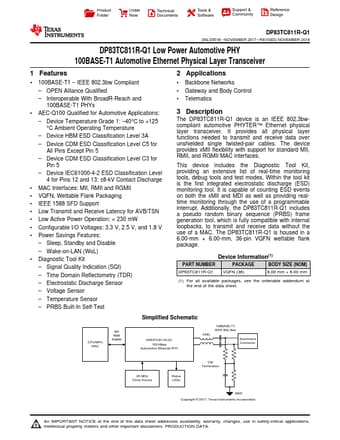

Preview of DP83TC811R-Q1 PDF
DP83TC811R-Q1 Datasheet Preview Page 2 DP83TC811R-Q1 Datasheet Preview Page 3

Datasheet Details

Part number:

DP83TC811R-Q1

Manufacturer:

Texas Instruments ↗

File Size:

2.01 MB

Description:

100base-t1 automotive ethernet physical layer transceiver.
