DRV10866 - Sensorless BLDC Motor Driver

DRV10866 Description

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community DRV10866 SBVS206A * NOVEMBER 2012 * REVISED .
DRV10866 is a 3- phase, sensorless motor driver with integrated power MOSFETs with drive current capability up to 680-mA peak.

DRV10866 Features

* 1 Input Voltage Range: 1.65 V to 5.5 V
* Six Integrated MOSFETS With 680-mA Peak Output Current
* Ultralow Quiescent Current: 5 µA (Typical) in Standby Mode
* Total Driver H+L RDSOn 900 mΩ
* Sensorless Proprietary BMEF Control Scheme
* 150° Commutatio

DRV10866 Applications

* Notebook CPU Fans
* Game Station CPU Fans

📥 Download Datasheet

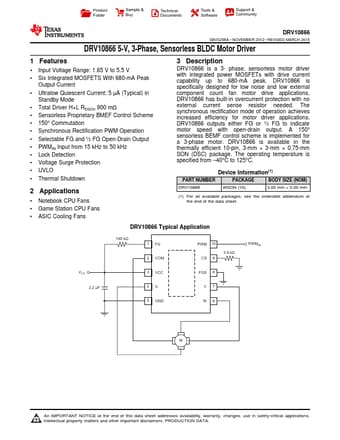

Preview of DRV10866 PDF
