DRV401 - Sensor Signal Conditioning IC

DRV401 Description

DRV401 SBVS070B * JUNE 2006 * REVISED MAY 2009 Sensor Signal Conditioning IC for Closed-Loop Magnetic Current Sensor .
The DRV401 is designed to control and process signals from specific magnetic current sensors made by Vacuumschmelze GmbH & Co.

DRV401 Features

* D DESIGNED FOR SENSORS FROM VACUUMSCHMELZE (VAC) D SINGLE SUPPLY: 5V D POWER OUTPUT: H-Bridge D DESIGNED FOR DRIVING INDUCTIVE LOADS D EXCELLENT DC PRECISION D WIDE SYSTEM BANDWIDTH D HIGH-RESOLUTION, LOW-TEMPERATURE DRIFT D BUILT-IN DEGAUSS SYSTEM D EXTENSIVE FAULT DETECTION D EXTERNAL HIGH-POWER D

📥 Download Datasheet

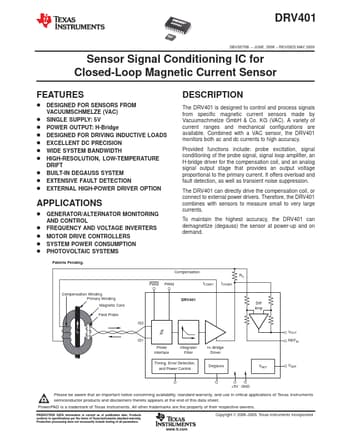

Preview of DRV401 PDF
datasheet Preview Page 2 datasheet Preview Page 3
