DRV421, Integrated Magnetic Fluxgate Sensor

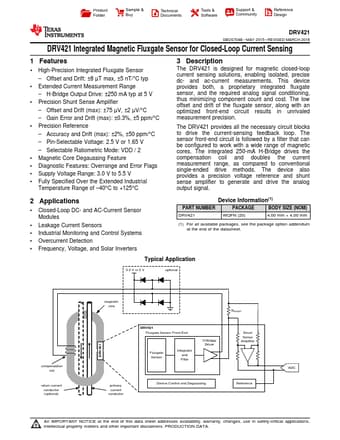

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community Reference Design DRV421 SBOS704B * MAY 2015 The DRV421 is designed for magnetic closed-loop current sensing solutions, enabling isolated, precise dc- and ac-current measurements.

datasheet Preview Page 1 from Datasheet4u.com

DRV421-etcTI.pdf

DRV421 Datasheet Preview — Preview of DRV421 PDF

Datasheet Details

Part number:

DRV421

Manufacturer:

Texas Instruments ↗

File Size:

1.31 MB

Description:

Integrated Magnetic Fluxgate Sensor

Features

* 1 High-Precision Integrated Fluxgate Sensor
* Offset and Drift: ±8 µT max, ±5 nT/°C typ
* Extended Current Measurement Range
* H-Bridge Output Drive: ±250 mA typ at 5 V
* Precision Shunt Sense Amplifier
* Offset and Drift (max): ±75 µV, ±2 µV/°C

Applications

* Closed-Loop DC- and AC-Current Sensor Modules
* Leakage Current Sensors
* Industrial Monitoring and Control Systems
* Overcurrent Detection
* Frequency, Voltage, and Solar Inverters Device Information(1) PART NUMBER PACKAGE BODY SIZE (NOM) DRV421 WQFN
