DRV8262

Single or Dual H-Bridge Motor Driver

DRV8262 Features

* Single or dual H-bridge motor driver

* Drives One or two brushed-DC motors

* One stepper motor

* One or two thermoelectric coolers (TEC)

* 4.5V to 60V operating supply voltage range

* Low RDS(ON):

* 100mΩ HS + LS (Dual H-Bridge)

DRV8262 General Description

The DRV8262 is a wide-voltage, high-power, Hbridge motor driver for a wide variety of industrial applications. The device integrates two H-bridges to drive one or two DC motors or a bipolar stepper motor. The DRV8262 supports up to 16A peak current in the dual H-bridge mode and up to 32A in the sin.

DRV8262 Datasheet (2.81 MB)

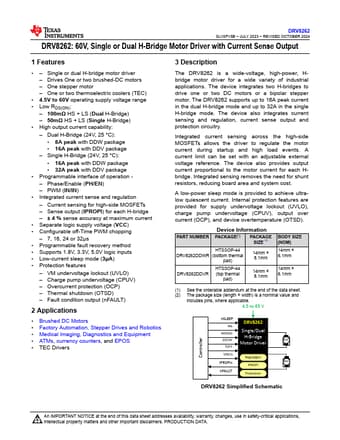

Preview of DRV8262 PDF

Datasheet Details

Part number:

DRV8262

Manufacturer:

Texas Instruments ↗

File Size:

2.81 MB

Description:

Single or dual h-bridge motor driver.
DRV8262 SLVSFV5B

* JULY 2023

* REVISED OCTOBER 2024 DRV8262: 60V, Single or Dual H-Bridge Motor Driver with Current Sense Output 1 Fe.
