DRV8701

Brushed DC Motor Full-Bridge Gate Driver

DRV8701 Features

* 1 Single H-Bridge Gate Driver

* Drives Four External N-Channel MOSFETs

* Supports 100% PWM Duty Cycle

* 5.9-V to 45-V Operating Supply Voltage Range

* Two Control Interface Options

* PH/EN (DRV8701E)

* PWM (DRV8701P)

* Adjustable Gate

DRV8701 General Description

The DRV8701 is a single H-bridge gate driver that uses four external N-channel MOSFETs targeted to drive a 12-V to 24-V bidirectional brushed DC motor. A PH/EN (DRV8701E) or PWM (DRV8701P) interface allows simple interfacing to controller circuits. An internal sense amplifier allows for adjustable c.

DRV8701 Datasheet (2.95 MB)

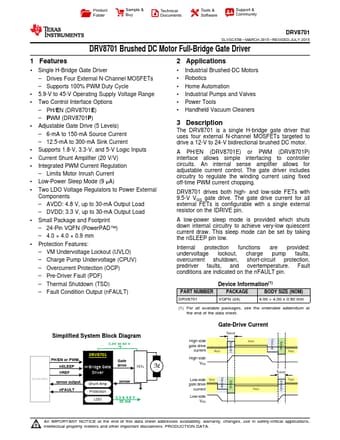

Preview of DRV8701 PDF

Datasheet Details

Part number:

DRV8701

Manufacturer:

Texas Instruments ↗

File Size:

2.95 MB

Description:

Brushed dc motor full-bridge gate driver.
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community DRV8701 SLVSCX5B

* MARCH 2015

* REVISED JULY.
