DRV8703-Q1, DRV8702-Q1 Datasheet - Texas Instruments

DRV8703-Q1 Automotive H-Bridge Gate Driver

The DRV870x-Q1 devices are small single H-bridge gate drivers that use four external N-channel MOSFETs targeted to drive a bidirectional brushedDC motor. Copyright © 2016, Texas Instruments Incorporated 1 An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, .

DRV8703-Q1 Features

* 1 AEC-Q100 Qualified for Automotive Applications

* Device Temperature Grade 1:

* 40°C to +125°C Ambient Operating Temperature

* Single H-Bridge Gate Driver

* Drives Four External N-Channel MOSFETs

* Supports 100% PWM Duty Cycle

* 5.5 to 45-V Op

DRV8702-Q1-etcTI.pdf

This datasheet PDF includes multiple part numbers: DRV8703-Q1, DRV8702-Q1. Please refer to the document for exact specifications by model.

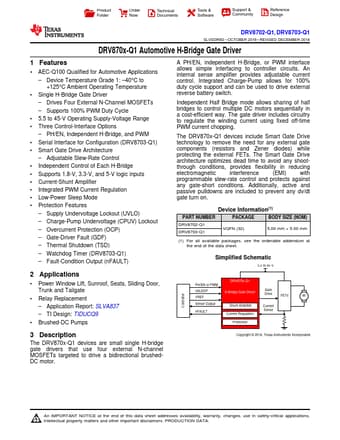

DRV8703-Q1 Datasheet Preview Page 2 DRV8703-Q1 Datasheet Preview Page 3
