DRV8704

52-V Dual H-Bridge PWM Gate Driver

Texas Instruments

DRV8704 Features

* 1 Pulse Width Modulation (PWM) Motor Driver

* Drives External N-Channel MOSFETs

* PWM Control Interface for Dual DC Motors

* Supports 100% PWM Duty Cycle

* 8-V to 52-V Operating Supply Voltage Range

* Adjustable Gate Drive (4 Levels)

* 50-mA t

DRV8704 General Description

The DRV8704 is a dual-brushed motor controller for industrial equipment applications. The device controls external N-channel MOSFETs configured as two Hbridges. Motor current can be accurately controlled using adaptive blanking time and various current decay modes, including an automatic mixed decay.

DRV8704 Datasheet (2.02 MB)

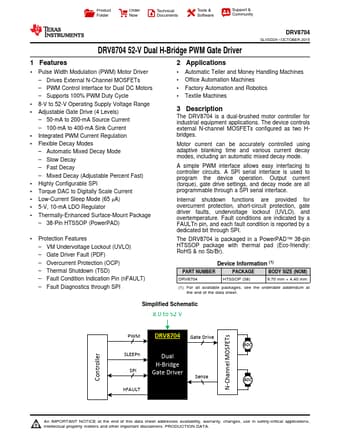

DRV8704 Datasheet Preview — Preview of DRV8704 PDF

Datasheet Details

Part number:

DRV8704

Manufacturer:

Texas Instruments ↗

File Size:

2.02 MB

Description:

52-v dual h-bridge pwm gate driver.
Product Folder Order Now Technical Documents Tools & Software Support & Community DRV8704 52-V Dual H-Bridge PWM Gate Driver DRV8704 SLVSD29
