DS280DF810

28 Gbps Multi-Rate 8-Channel Retimer

DS280DF810 Features

* 1 Octal-Channel Multi-Rate Retimer with Integrated Signal Conditioning

* All Channels Lock Independently from 20.2 Gbps to 28.4 Gbps (Including Sub-Rates Like 10.1376 Gbps, 10.3125 Gbps, 12.5 Gbps, and More)

* Ultra-Low Latency:

DS280DF810 General Description

The DS280DF810 is an eight-channel multi-rate Retimer with integrated signal conditioning. It is used to extend the reach and robustness of long, lossy, crosstalk-impaired high-speed serial links while achieving a bit error rate (BER) of 10-15 or less. Each channel of the DS280DF810 independently lo.

DS280DF810 Datasheet (2.00 MB)

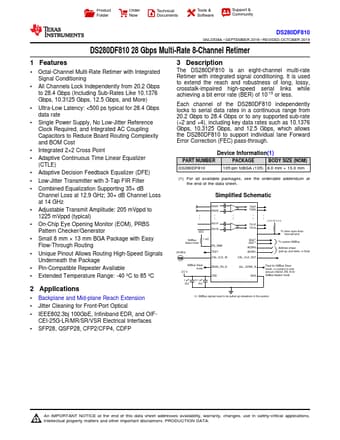

Preview of DS280DF810 PDF

Datasheet Details

Part number:

DS280DF810

Manufacturer:

Texas Instruments ↗

File Size:

2.00 MB

Description:

28 gbps multi-rate 8-channel retimer.
Product Folder Order Now Technical Documents Tools & Software Support & Community DS280DF810 SNLS538A

* SEPTEMBER 2016

* REVISED .
