DS90C363

+3.3V Programmable LVDS Transmitter

DS90C363 Features

* 1

* 23 20 to 65 MHz shift clock support

* Programmable Transmitter (DS90C363) strobe select (Rising or Falling edge strobe)

* Single 3.3V supply

* Chipset (TX + RX) power consumption < 250 mW (typ)

* Power-down mode (< 0.5 mW total)

* Single pixel per c

DS90C363 General Description

The DS90C363 transmitter converts 21 bits of CMOS/TTL data into three LVDS (Low Voltage Differential Signaling) data streams. A phase-locked transmit clock is transmitted in parallel with the data streams over a fourth LVDS link. Every cycle of the transmit clock 21 bits of input data are sampled an.

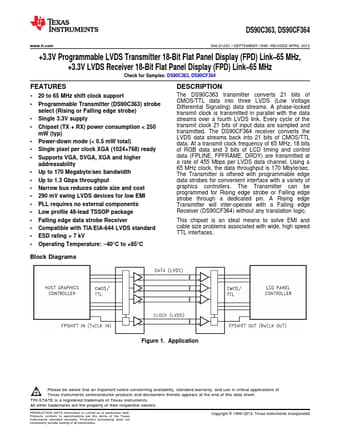

DS90C363 Datasheet (1.10 MB)

Preview of DS90C363 PDF

Datasheet Details

Part number:

DS90C363

Manufacturer:

Texas Instruments ↗

File Size:

1.10 MB

Description:

+3.3v programmable lvds transmitter.
DS90C363, DS90CF364 www.ti.com SNLS123C

* SEPTEMBER 1999

* REVISED APRIL 2013 +3.3V Programmable LVDS Transmitter 18-Bit Flat Panel.
