DS90C363A

+3.3V Programmable LVDS Transmitter

DS90C363A Features

* n 20 to 65 MHz shift clock support n Rejects > ± 3ns Jitter from VGA chip with less than 225ps output Jitter @65MHz (TJCC) n Best

* in

* Class Set & Hold Times on TxINPUTs n Tx power consumption < 130 mW (typ) @65MHz Grayscale n > 50% Less Power Dissipation than BiCMOS Alternatives n Tx

DS90C363A General Description

The DS90C363A/DS90CF363A transmitter converts 21 bits of CMOS/TTL data into three LVDS (Low Voltage Differential Signaling) data streams. A phase-locked transmit clock is transmitted in parallel with the data streams over a fourth LVDS link. Every cycle of the transmit clock 21 bits of input data ar.

DS90C363A Datasheet (219.56 KB)

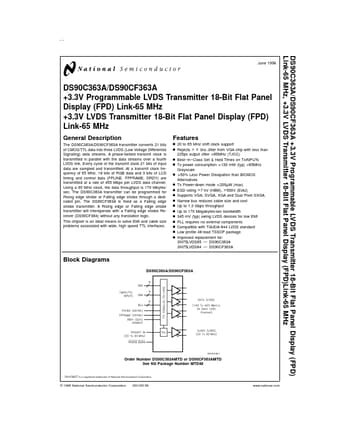

Preview of DS90C363A PDF

Datasheet Details

Part number:

DS90C363A

Manufacturer:

National Semiconductor

File Size:

219.56 KB

Description:

+3.3v programmable lvds transmitter.
DS90C363A/DS90CF363A +3.3V Programmable LVDS Transmitter 18-Bit Flat Panel Display (FPD) Link-65 MHz, +3.3V LVDS Transmitter 18-Bit Flat Panel Display.
