DS90C363

+3.3V Programmable LVDS Transmitter

DS90C363 Features

* n 20 to 65 MHz shift clock support n Programmable Transmitter (DS90C363) strobe select (Rising or Falling edge strobe) n Single 3.3V supply n Chipset (Tx + Rx) power consumption < 250 mW (typ) n Power-down mode ( < 0.5 mW total) n Single pixel per clock XGA (1024x768) ready n Supports VGA, SVGA, XGA

DS90C363 General Description

The DS90C363 transmitter converts 21 bits of CMOS/TTL data into three LVDS (Low Voltage Differential Signaling) data streams. A phase-locked transmit clock is transmitted in parallel with the data streams over a fourth LVDS link. Every cycle of the transmit clock 21 bits of input data are sampled an.

DS90C363 Datasheet (285.77 KB)

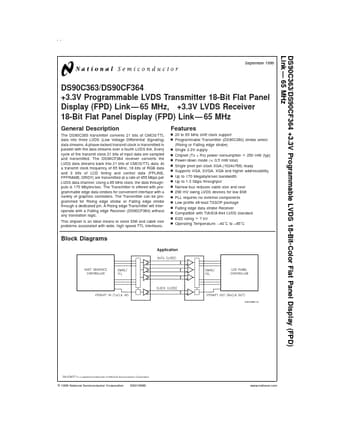

Preview of DS90C363 PDF

Datasheet Details

Part number:

DS90C363

Manufacturer:

National Semiconductor

File Size:

285.77 KB

Description:

+3.3v programmable lvds transmitter.
DS90C363/DS90CF364 +3.3V Programmable LVDS 18-Bit-Color Flat Panel Display (FPD) Link

* 65 MHz September 1999 DS90C363/DS90CF364 +3.3V Progr.
