DS90C365

+3.3V Programmable LVDS Transmitter

DS90C365 Features

* n 20 to 85 MHz shift clock support n Best

* in

* Class Set & Hold Times on TxINPUTs n Tx power consumption < 130 mW (typ) @85MHz Grayscale n Tx Power-down mode < 200µW (max) n Supports VGA, SVGA, XGA and Single/Dual Pixel SXGA. n Narrow bus reduces cable size and cost n Up to 2.38 Gbps t

DS90C365 General Description

The DS90C385 transmitter converts 28 bits of CMOS/TTL data into four LVDS (Low Voltage Differential Signaling) data streams. A phase-locked transmit clock is transmitted in parallel with the data streams over a fifth LVDS link. Every cycle of the transmit clock 28 bits of input data are sampled and .

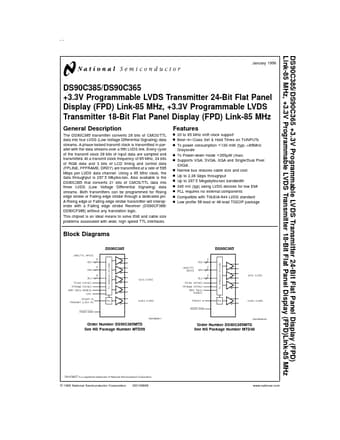

DS90C365 Datasheet (333.12 KB)

Preview of DS90C365 PDF

Datasheet Details

Part number:

DS90C365

Manufacturer:

National Semiconductor

File Size:

333.12 KB

Description:

+3.3v programmable lvds transmitter.
DS90C385/DS90C365 +3.3V Programmable LVDS Transmitter 24-Bit Flat Panel Display (FPD) Link-85 MHz, +3.3V Programmable LVDS Transmitter 18-Bit Flat Pan.
