DS90CR561 18-Bit Color Flat Panel Display Link

DS90CR561 Description

OBSOLETE DS90CR561, DS90CR562 www.ti.com SNOS766B * JULY 1997 * REVISED APRIL 2013 18-Bit Color Flat Panel Display (FPD) Link Chec.
The DS90CR561 transmitter converts 21 bits of CMOS/TTL data into three LVDS (Low Voltage Differential Signaling) data streams.

DS90CR561 Features

* 1
* 2 Up to 105 Megabyte/sec bandwidth
* Narrow bus reduces cable size and cost
* 290 mV swing LVDS devices for low EMI
* Low power CMOS design
* Power-down mode
* PLL requires no external components
* Low profile 48-lead TSSOP package

DS90CR561 Applications

* of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet. All trademarks are the property of their respective owners. 2 PRODUCTION DATA information is current as of publication date. Products conform to specifications per the terms of the Texas Instr

📥 Download Datasheet

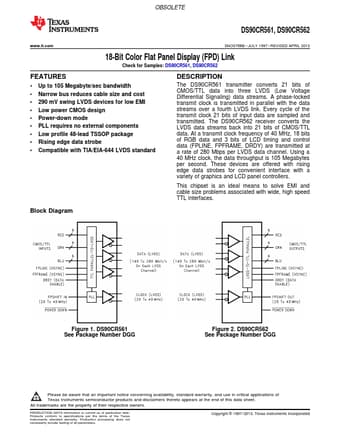

Preview of DS90CR561 PDF
