DS90CR583 Datasheet - Texas Instruments

LVDS

DS90CR583 Features

* 1

* 2 20 to 65 MHz Shift clk Support

* Up to 227 Mbytes/s Bandwidth

* Cable Size is Reduced to Save Cost

* 290 mV Swing LVDS Devices for Low EMI

* Low Power CMOS Design (< 550 mW typ)

* Power-Down Mode Saves Power (< 0.25 mW)

* PLL Requires No E

DS90CR583 General Description

The DS90CR583 transmitter converts 28 bits of CMOS/TTL data into four LVDS (Low Voltage Differential Signaling) data streams. A phase-locked transmit clock is transmitted in parallel with the data streams over a fifth LVDS link. Every cycle of the transmit clock 28 bits of input data are sampled and.

DS90CR583 Datasheet (708.19 KB)

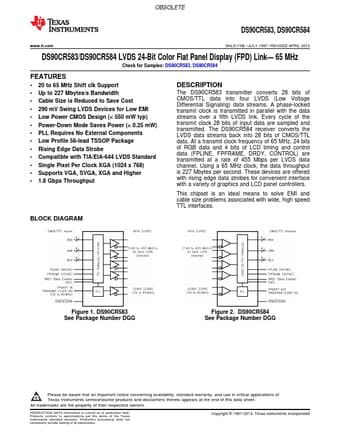

Preview of DS90CR583 PDF

Datasheet Details

Part number:

DS90CR583

Manufacturer:

Texas Instruments ↗

File Size:

708.19 KB

Description:

Lvds.
OBSOLETE DS90CR583, DS90CR584 www.ti.com SNLS110B JULY 1997 REVISED APRIL 2013 DS90CR583/DS90CR584 LVDS 24-Bit Color Flat Pane.
