DS92LV010A

Bus LVDS 3.3/5.0V Single Transceiver

DS92LV010A Features

* 1

* 2 Bus LVDS Signaling (BLVDS)

* Designed for Double Termination Applications

* Balanced Output Impedance

* Lite Bus Loading 5pF Typical

* Glitch Free Power Up/Down (Driver Disabled)

* 3.3V or 5.0V Operation

* ±1V Common Mode Range

* ±

DS92LV010A General Description

The DS92LV010A is one in a series of transceivers designed specifically for the high speed, low power proprietary bus backplane interfaces. The device operates from a single 3.3V or 5.0V power supply and includes one differential line driver and one receiver. To minimize bus loading the driver outpu.

DS92LV010A Datasheet (1.03 MB)

Preview of DS92LV010A PDF

Datasheet Details

Part number:

DS92LV010A

Manufacturer:

Texas Instruments ↗

File Size:

1.03 MB

Description:

Bus lvds 3.3/5.0v single transceiver.
DS92LV010A www.ti.com SNLS007E

* MAY 1998

* REVISED APRIL 2013 DS92LV010A Bus LVDS 3.3/5.0V Single Transceiver Check for Samples: D.

📁 Related Datasheet

DS92LV010A - Bus LVDS 3.3/5.0V Single Transceiver (National Semiconductor)
DS92LV010A Bus LVDS 3.3/5.0V Single Transceiver May 1998 DS92LV010A Bus LVDS 3.3/5.0V Single Transceiver General Description The DS92LV010A is one i.

DS92LV010AEP - Bus LVDS 3.3/5.0V Single Transceiver (National Semiconductor)
DS92LV010AEP Bus LVDS 3.3/5.0V Single Transceiver .. OBSOLETE DS92LV010AEP June 15, 2009 Bus LVDS 3.3/5.0V Single Transceiver Ge.

DS92LV040A - 4 Channel Bus LVDS Transceiver (National Semiconductor)
DS92LV040A 4 Channel Bus LVDS Transceiver August 2002 DS92LV040A 4 Channel Bus LVDS Transceiver General Description The DS92LV040A is one in a serie.

DS92LV040A - 4-Channel Bus LVDS Transceiver (Texas Instruments)
Product Folder Order Now Technical Documents Tools & Software Support & Community DS92LV040A SNOS521E – JANUARY 2001 – REVISED JANUARY 2018 DS92L.

DS92LV0411 - Link-II Serializer/Deserializer (Texas Instruments)
DS92LV0411, DS92LV0412 .ti. SNLS331B – MAY 2010 – REVISED APRIL 2013 DS92LV0411 / DS92LV0412 5 - 50 MHz Channel Link II Serializer/Deserializ.

DS92LV0411 - 5 - 50 MHz Channel Link II Serializer/Deserializer (National Semiconductor)
.. DS92LV0411 / DS92LV0412 5- 50 MHz Channel Link II Serializer/Deserializer with LVDS Parallel Interface PRELIMINARY DS92LV0411 /.

DS92LV0412 - Link-II Serializer/Deserializer (Texas Instruments)
DS92LV0411, DS92LV0412 .ti. SNLS331B – MAY 2010 – REVISED APRIL 2013 DS92LV0411 / DS92LV0412 5 - 50 MHz Channel Link II Serializer/Deserializ.

DS92LV0412 - 5 - 50 MHz Channel Link II Serializer/Deserializer (National Semiconductor)
.. DS92LV0411 / DS92LV0412 5- 50 MHz Channel Link II Serializer/Deserializer with LVDS Parallel Interface PRELIMINARY DS92LV0411 /.

TAGS

DS92LV010A Bus LVDS 3.3 5.0V Single Transceiver Texas Instruments

Image Gallery

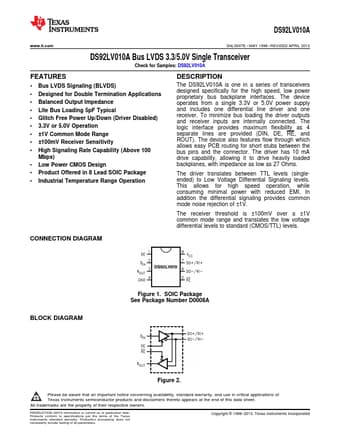

DS92LV010A Datasheet Preview Page 2 DS92LV010A Datasheet Preview Page 3
