ESDS311, ESDS312 - Data-Line Surge and ESD Protection Diode Array

Texas Instruments

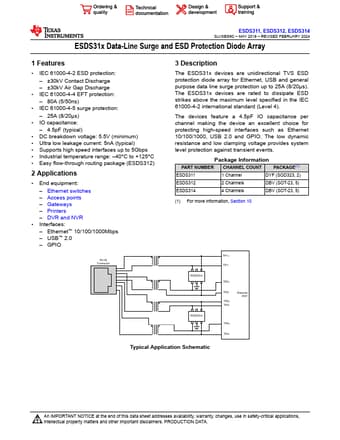

ESDS311 Datasheet Preview — This datasheet PDF includes multiple part numbers: ESDS311, ESDS312. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	ESDS311, ESDS312
Manufacturer	Texas Instruments ↗
File Size	1.03 MB
Description	Data-Line Surge and ESD Protection Diode Array
Datasheet	ESDS312-etcTI.pdf
Note	This datasheet PDF includes multiple part numbers: ESDS311, ESDS312. Please refer to the document for exact specifications by model.

ESDS311 Product details

Description

The ESDS31x devices are unidirectional TVS ESD protection diode array for Ethernet, USB and general purpose data line surge protection up to 25A (8/20μs).

Features

IEC 61000-4-2 ESD protection:.
±30kV Contact Discharge.
±30kV Air Gap Discharge.
IEC 61000-4-4 EFT protection:.
80A (5/50ns).
IEC 61000-4-5 surge protection:.
25A (8/20μs).
IO capacitance:.
4.5pF (typical).
DC breakdown voltage: 5.5V (minimum).
Ultra low leakage current: 5nA (typical).
Supports high speed interfaces up to 5Gbps.
Industrial temperature range:.
40°C to +125.
