ESDSU5V0A1

Bi-direction ESD Protection Diode

JCET

ESDSU5V0A1 Features

* z Bi-directional ESD protection of one line z Low capacitance: 0.24pF z Reverse stand

* off voltage: 5V z Low reverse clamping voltage z Low leakage current z Excellent package:1.0mm×0.6mm×0.5mm z Fast response time z JESD22-A114-B ESD Rating of class 3B per human body model z IEC 61000-4-2 L

ESDSU5V0A1 General Description

Designed to protect voltage sensitive electronic components from ESD and other transients. Excellent clamping capability, low leakage, low capacitance, and fast response time provide best in class protection on designs that are exposed to ESD. The combination of small size, low capacitance, and high.

ESDSU5V0A1 Datasheet (1.31 MB)

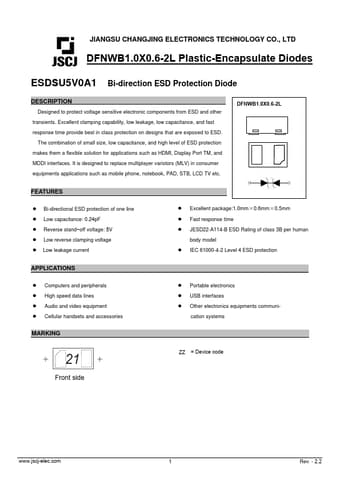

ESDSU5V0A1 Datasheet Preview — Preview of ESDSU5V0A1 PDF

Datasheet Details

Part number:

ESDSU5V0A1

Manufacturer:

JCET

File Size:

1.31 MB

Description:

Bi-direction esd protection diode.
JIANGSU CHANGJING ELECTRONICS TECHNOLOGY CO., LTD DFNWB1.0X0.6-2L Plastic-Encapsulate Diodes ESDSU5V0A1 Bi-direction ESD Protection Diode DESCRIPTIO.
