ESDS312 - Data-Line Surge and ESD Protection Diode Array

Texas Instruments

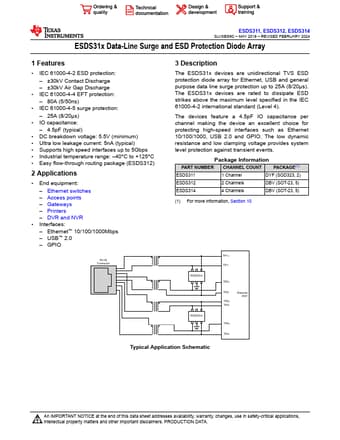

ESDS312 Datasheet Preview — Preview of ESDS312 PDF

Datasheet Details

Part number	ESDS312
Manufacturer	Texas Instruments ↗
File Size	1.03 MB
Description	Data-Line Surge and ESD Protection Diode Array
Datasheet	ESDS312-etcTI.pdf

ESDS312 Product details

Description

The ESDS31x devices are unidirectional TVS ESD protection diode array for Ethernet, USB and general purpose data line surge protection up to 25A (8/20μs).

Features

IEC 61000-4-2 ESD protection:.
±30kV Contact Discharge.
±30kV Air Gap Discharge.
IEC 61000-4-4 EFT protection:.
80A (5/50ns).
IEC 61000-4-5 surge protection:.
25A (8/20μs).
IO capacitance:.
4.5pF (typical).
DC breakdown voltage: 5.5V (minimum).
Ultra low leakage current: 5nA (typical).
Supports high speed interfaces up to 5Gbps.
Industrial temperature range:.
40°C to +125.
