GD65232 - Multiple RS-232 Drivers and Receivers

Texas Instruments

GD65232 Datasheet Preview — Preview of GD65232 PDF

Datasheet Details

Part number	GD65232
Manufacturer	Texas Instruments ↗
File Size	1.44 MB
Description	Multiple RS-232 Drivers and Receivers
Datasheet	GD65232-etcTI.pdf

GD65232 Product details

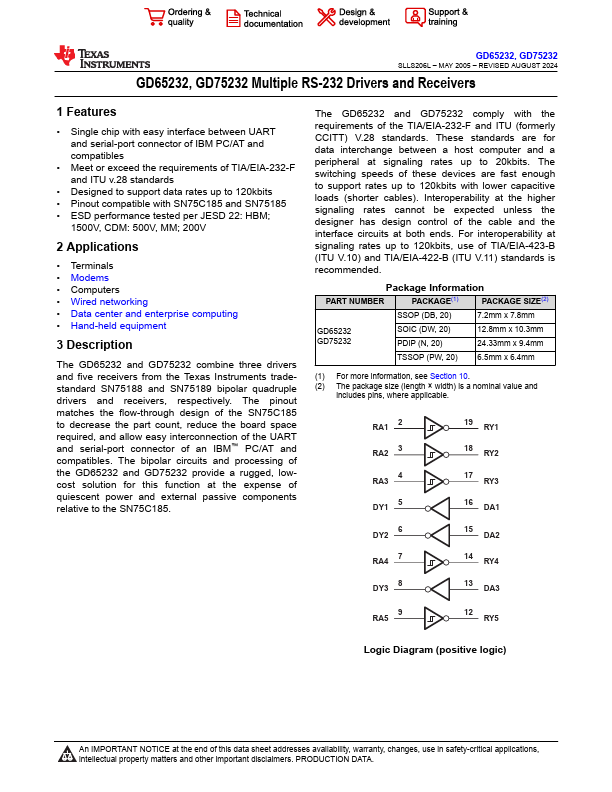

Description

The GD65232 and GD75232 combine three drivers and five receivers from the Texas Instruments tradestandard SN75188 and SN75189 bipolar quadruple drivers and receivers, respectively.

Features

Single chip with easy interface between UART and serial-port connector of IBM PC/AT and compatibles.
Meet or exceed the requirements of TIA/EIA-232-F and ITU v.28 standards.
Designed to support data rates up to 120kbits.

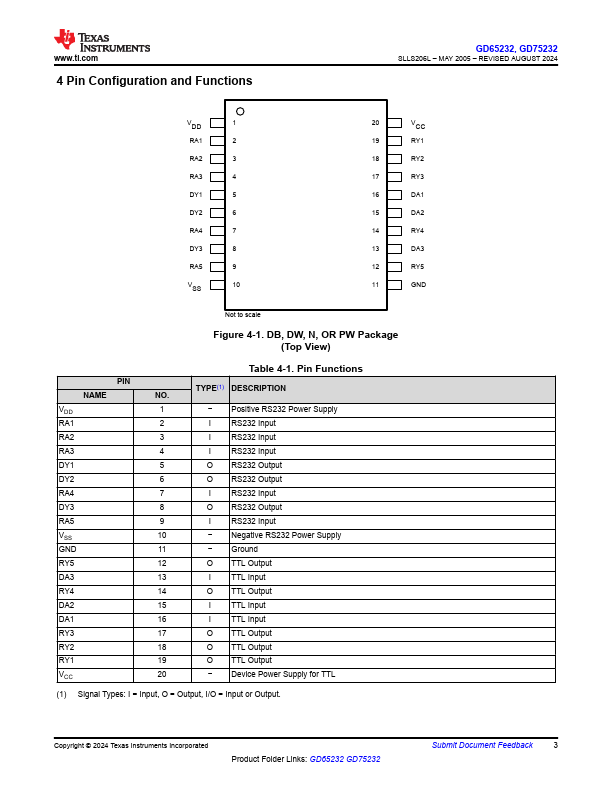

Pinout compatible with SN75C185 and SN75185.
ESD performance tested per JESD 22: HBM; 1500V, CDM: 500V, MM; 200V 2.
