HC541 - OCTAL BUFFERS AND LINE DRIVER

HC541 Description

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community SN54HC541, SN74HC541 SCLS305D * JANUARY 1996 These octal buffers and line drivers feature the performance of the SNx4HC541 devices and a pinout with inputs and outputs on opposite sides of the pa.

HC541 Features

* 1 Wide Operating Voltage Range of 2 V to 6 V
* High-Current 3-State Outputs Drive Bus Lines Directly or Up to 15 LSTTL Loads
* Low Power Consumption, 80-µA Maximum ICC
* Typical tpd = 10 ns
* ±6-mA Output Drive at 5 V
* Low Input Current of 1 µA Maxim

HC541 Applications

* LEDs
* Servers
* PCs and Notebooks
* Wearable Health and Wellness Devices

📥 Download Datasheet

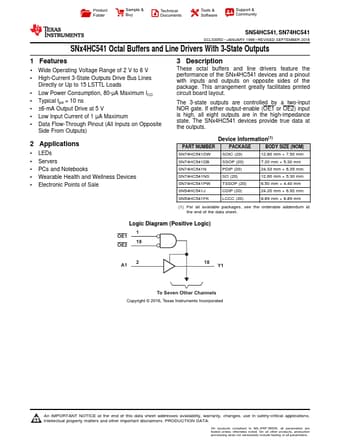

Preview of HC541 PDF
datasheet Preview Page 2 datasheet Preview Page 3
