ISO1500 Datasheet - Texas Instruments

ISO1500 RS-485/RS-422 Transceiver

The ISO1500 device is a galvanically-isolated differential line transceiver for TIA/EIA RS-485 and RS-422 applications. This device has a 3-channel digital isolator and an RS-485 transceiver in an ultrasmall 16-pin SSOP package. The bus pins of this transceiver are protected against IEC ESD contact .

ISO1500 Features

* 1 Meets or exceeds requirements of TIA/EIA-485-A

* Half-duplex transceiver

* Low-EMI 1-Mbps data rate

* Bus I/O protection

* ± 16 kV HBM ESD

* 1.71-V to 5.5-V Logic-side supply (VCC1), 4.5-V to 5.5-V Bus-side supply (VCC2)

* 1/8 Unit load: up

ISO1500-etcTI.pdf

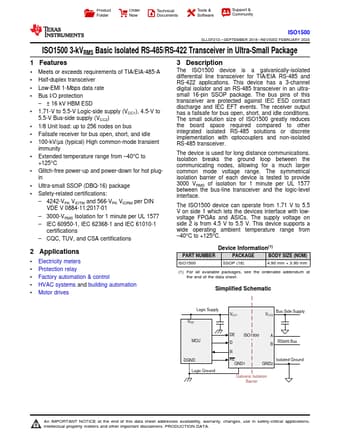

Preview of ISO1500 PDF
ISO1500 Datasheet Preview Page 2 ISO1500 Datasheet Preview Page 3

Datasheet Details

Part number:

ISO1500

Manufacturer:

Texas Instruments ↗

File Size:

2.23 MB

Description:

rs-485/rs-422 transceiver.
