ISO1541, ISO1540 - Low-Power Bidirectional I2C Isolators

ISO1541 Description

ISO1540, ISO1541 SLLSEB6F * JULY 2012 * REVISED DECEMBER 2022 ISO154x Low-Power Bidirectional I2C Isolators 1 .
The ISO1540 and ISO1541 devices are low-power, bidirectional isolators that are compatible with I2C interfaces.

ISO1541 Features

* Isolated bidirectional, I2C compatible, communication
* Supports up to 1-MHz operation
* 3-V to 5.5-V supply range
* Open-drain outputs With 3.5-mA Side 1 and 35- mA Side 2 sink current capability
* 40°C to +125°C operating temperature
* ±50

ISO1541 Applications

* Isolated I2C buses
* SMBus and PMBus interfaces
* Open-drain networks
* Motor control systems
* Battery management

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ISO1541, ISO1540. Please refer to the document for exact specifications by model.

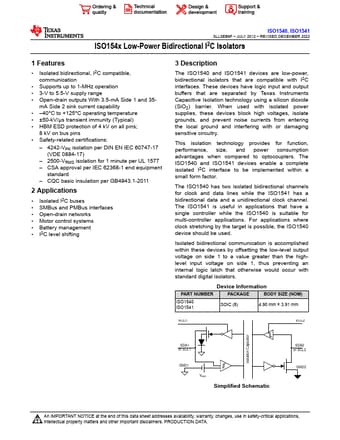

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ISO1541, ISO1540
Manufacturer
Texas Instruments ↗
File Size
1.23 MB
Datasheet
ISO1540-etcTI.pdf
Description
Low-Power Bidirectional I2C Isolators
Note
This datasheet PDF includes multiple part numbers: ISO1541, ISO1540.
Please refer to the document for exact specifications by model.
