ISO1541-Q1

Low-Power Bidirectional I2C Isolators

ISO1541-Q1 Features

* Qualified for automotive applications

* AEC-Q100 qualified with the following results:

* Device temperature grade 1:

* 40°C to +125°C ambient operating temperature

* Device HBM ESD classification level 3A

* Device CDM ESD classification level C6

ISO1541-Q1 General Description

The ISO1540-Q1 and ISO1541-Q1 devices are lowpower, bidirectional isolators that are compatible with I2C interfaces. These devices have logic input and output buffers that are separated by Texas Instruments Capacitive Isolation technology using a silicon dioxide (SiO2) barrier. When used with isola.

ISO1541-Q1 Datasheet (1.25 MB)

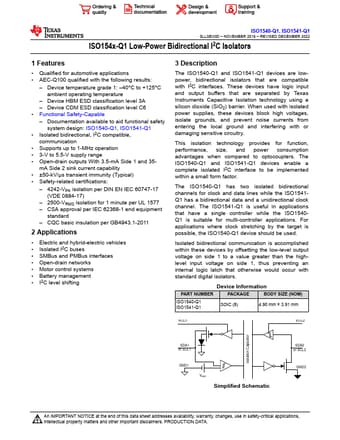

Preview of ISO1541-Q1 PDF

Datasheet Details

Part number:

ISO1541-Q1

Manufacturer:

Texas Instruments ↗

File Size:

1.25 MB

Description:

Low-power bidirectional i2c isolators.
