ISO224 - Reinforced Isolated Amplifier

ISO224 Description

Product Folder Order Now Technical Documents Tools & Software Support & Community ISO224 SBAS738A * JUNE 2018 * REVISED OCTOBER 2.
The ISO224 is a precision isolated amplifier with an output separated from the input circuitry by an isolation barrier with high immunity to magnetic.

ISO224 Features

* 1 Offered in High-Grade (ISO224B) and Low-Grade (ISO224A) Versions

ISO224 Applications

* Overvoltage Input Clamp With 9-kV ESD
* ±4-V Differential Output Voltage Range With Common-Mode at VDD2 / 2
* Low DC-Error Operation (ISO224B):
* Input Offset: ±5 mV at 25°C, ±15 µV/°C max
* Gain Error: ±0.3% at 25°C, ±35 ppm/°C max
* Nonlinearity: ±

📥 Download Datasheet

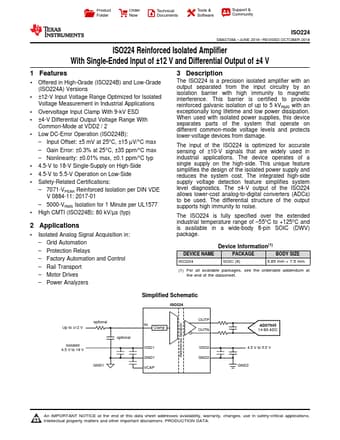

Preview of ISO224 PDF
