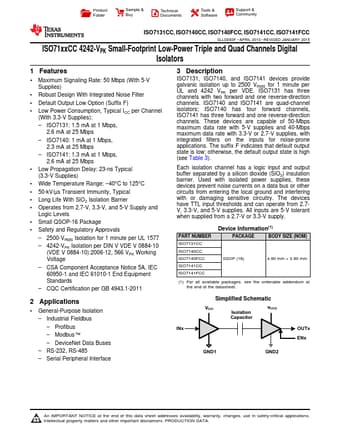

ISO7140CC Small-Footprint Low-Power Triple and Quad Channels Digital Isolators

ISO7131, ISO7140, and ISO7141 devices provide galvanic isolation up to 2500 VRMS for 1 minute per UL and 4242 VPK per VDE. ISO7131 has three channels with two forward and one reverse-direction channels. ISO7140 and ISO7141 are quad-channel isolators; ISO7140 has four forward channels, ISO7141 has th.

ISO7140CC Features

* 1 Maximum Signaling Rate: 50 Mbps (With 5-V Supplies)

* Robust Design With Integrated Noise Filter

* Default Output Low Option (Suffix F)

* Low Power Consumption, Typical ICC per Channel (With 3.3-V Supplies):

* ISO7131: 1.5 mA at 1 Mbps, 2.6 mA at 25 Mbps

ISO7131CC-etcTI.pdf

ISO7140CC Datasheet Preview — This datasheet PDF includes multiple part numbers: ISO7140CC, ISO7131CC. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ISO7140CC, ISO7131CC

Manufacturer:

Texas Instruments ↗

File Size:

1.46 MB

Description:

Small-footprint low-power triple and quad channels digital isolators.

Note:

This datasheet PDF includes multiple part numbers: ISO7140CC, ISO7131CC.
Please refer to the document for exact specifications by model.
