ISO7142CC Datasheet - Texas Instruments

ISO7142CC Small-Footprint and Low-Power Quad Channel Digital Isolator

ISO7142CC provides galvanic isolation up to 2500VRMS for 1 minute per UL and 4242-VPK per VDE. ISO7142CC is a quad-channel isolator with two forward and two reverse-direction channels. This device is capable of maximum data rate of 50 Mbps with 5-V supplies and 40 Mbps with 3.3-V or 2.7-V supplies. .

ISO7142CC Features

* 2 Applications

* 1 Maximum Signaling Rate: 50 Mbps (with 5-V Supplies)

* Robust Design With Integrated Noise Filter

* Low-Power Consumption, Typical ICC per Channel (with 3.3-V Supplies):

* 1.3 mA at 1 Mbps, 2.5 mA at 25 Mbps

* Wide Temperature Range:

ISO7142CC-etcTI.pdf

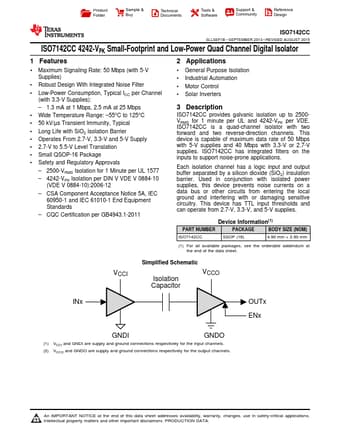

ISO7142CC Datasheet Preview — Preview of ISO7142CC PDF

Datasheet Details

Part number:

ISO7142CC

Manufacturer:

Texas Instruments ↗

File Size:

1.34 MB

Description:

Small-footprint and low-power quad channel digital isolator.
