ISO7310C - Single Channel Digital Isolator

Texas Instruments

📥 Download Datasheet

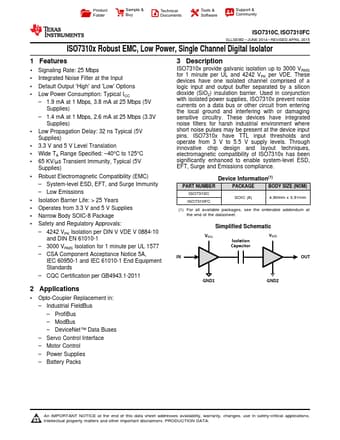

ISO7310C Datasheet Preview — Preview of ISO7310C PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: ISO7310C
Manufacturer: Texas Instruments ↗
File Size: 1.37 MB
Datasheet: ISO7310C-etcTI.pdf
Description: Single Channel Digital Isolator

ISO7310C Product details

Description

ISO7310x provide galvanic isolation up to 3000 VRMS for 1 minute per UL and 4242 VPK per VDE.

Features

1 Signaling Rate: 25 Mbps.
Integrated Noise Filter at the Input.
Default Output 'High' and 'Low' Options.
Low Power Consumption: Typical ICC.
1.9 mA at 1 Mbps, 3.8 mA at 25 Mbps (5V Supplies).
1.4 mA at 1 Mbps, 2.6 mA at 25 Mbps (3.3V Supplies).
Low Propagation Delay: 32 ns Typical (5V Supplies).
3.3 V and 5 V Level Translation.
Wide TA Range Specified:.
40°C to 125°C.
65 KV/μs Transient Immunity, T.
