ISO7710 - Robust EMC Reinforced Single-Channel Digital Isolator

Texas Instruments

ISO7710 Datasheet Preview — Preview of ISO7710 PDF

Datasheet Details

Part number	ISO7710
Manufacturer	Texas Instruments ↗
File Size	1.37 MB
Description	Robust EMC Reinforced Single-Channel Digital Isolator
Datasheet	ISO7710-etcTI.pdf

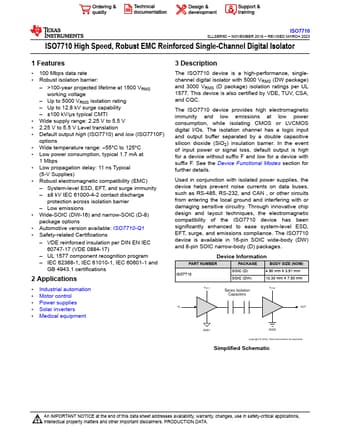

ISO7710 Product details

Description

The ISO7710 device is a high-performance, singlechannel digital isolator with 5000 VRMS (DW package) and 3000 VRMS (D package) isolation ratings per UL 1577.

Features

100 Mbps data rate.
Robust isolation barrier:.
>100-year projected lifetime at 1500 VRMS working voltage.
Up to 5000 VRMS isolation rating.
Up to 12.8 kV surge capability.
±100 kV/μs typical CMTI.
Wide supply range: 2.25 V to 5.5 V.
2.25 V to 5.5 V Level translation.
Default output high (ISO7710) and low (ISO7710F) options.
Wide temperature range:.
55°C to 125°C.
Low power consumption, typ.
