ISO7730 Datasheet, Isolators, Texas Instruments

ISO7730 Features

  • Isolators
  • 100 Mbps data rate
  • Robust isolation barrier:
      – >100-year projected lifetime at 1500 VRMS working voltage
      – Up to 5000 VRMS isolation

PDF File Details

Part number:

ISO7730

Manufacturer:

Texas Instruments ↗

File Size:

2.26MB

Download:

📄 Datasheet

Description:

Robust-emc reinforced and basic triple-channel digital isolators. The ISO773x devices are high-performance, triplechannel digital isolators with 5000 VRMS (DW package) and 3000 VRMS (DBQ package) iso

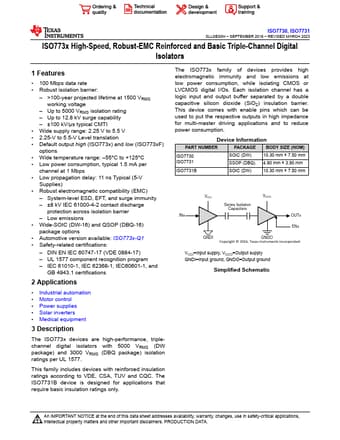

Datasheet Preview: ISO7730 📥 Download PDF (2.26MB)
Page 2 of ISO7730 Page 3 of ISO7730

ISO7730 Application

  • Applications
  • Industrial automation
  • Motor control
  • Power supplies
  • Solar inverters
  • Medical equipment
