ISO7831F, ISO7831 Datasheet - Texas Instruments

ISO7831F, ISO7831, Triple Digital Isolators

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community ISO7831, ISO7831F SLLSEP8B * JULY 2015 * REV.
The ISO7831x device is a high-performance, 3channel digital isolator with 8000-VPK isolation voltage.

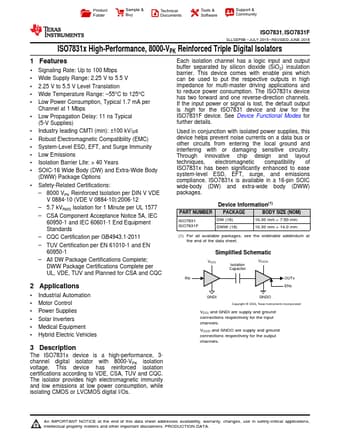

datasheet Preview Page 1 from Datasheet4u.com

ISO7831-etcTI.pdf

ISO7831F Datasheet Preview — This datasheet PDF includes multiple part numbers: ISO7831F, ISO7831. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ISO7831F, ISO7831

Manufacturer:

Texas Instruments ↗

File Size:

1.38 MB

Description:

Triple Digital Isolators

Note:

This datasheet PDF includes multiple part numbers: ISO7831F, ISO7831.
Please refer to the document for exact specifications by model.

Features

* 1 Signaling Rate: Up to 100 Mbps
* Wide Supply Range: 2.25 V to 5.5 V
* 2.25 V to 5.5 V Level Translation
* Wide Temperature Range:
* 55°C to 125°C
* Low Power Consumption, Typical 1.7 mA per Channel at 1 Mbps
* Low Propagation Delay: 11 ns Typ

Applications

* Each isolation channel has a logic input and output buffer separated by silicon dioxide (SiO2) insulation barrier. This device comes with enable pins which can be used to put the respective outputs in high impedance for multi-master driving applications and to reduce power consumption. The ISO7831x
