ISO7810F, ISO7810 Datasheet - Texas Instruments

ISO7810F Single-Channel Digital Isolator

The ISO7810x device is a high-performance, singlechannel digital isolator with 8000 VPK isolation voltage. This device has reinforced isolation certifications according to VDE, CSA, CQC, and TUV. The isolator provides high electromagnetic immunity and low emissions at low power consumption, while is.

ISO7810F Features

* 1 Signaling Rate: Up to 100 Mbps

* Wide Supply Range: 2.25 V to 5.5 V

* 2.25 V to 5.5 V Level Translation

* Wide Temperature Range:

* 55°C to 125°C

* Low Power Consumption, Typical 1.8 mA at 1 Mbps

* Low Propagation Delay: 10.7 ns Typical (5 V

ISO7810-etcTI.pdf

This datasheet PDF includes multiple part numbers: ISO7810F, ISO7810. Please refer to the document for exact specifications by model.

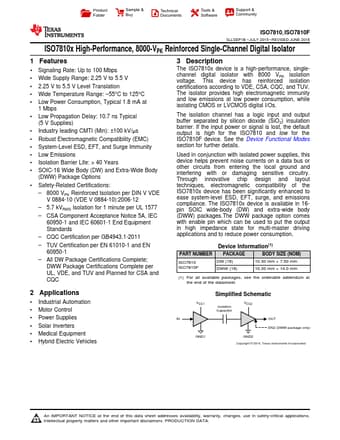

ISO7810F Datasheet Preview Page 2 ISO7810F Datasheet Preview Page 3
