ISO7821

Dual Channel Digital Isolator

ISO7821 Features

* 1 Signaling Rate: Up to 100 Mbps

* Wide Supply Range: 2.25 V to 5.5 V

* 2.25 V to 5.5 V Level Translation

* Wide Temperature Range:

* 55°C to 125°C

* Low Power Consumption, Typical 1.8 mA per Channel at 1 Mbps

* Low Propagation Delay: 11 ns Typ

ISO7821 General Description

The ISO7821 is a high-performance, dual-channel digital isolator with 8000 VPK isolation voltage. This device has reinforced isolation certifications according to VDE, CSA, CQC, and TUV. The isolator provides high electromagnetic immunity and low emissions at low power consumption, while isolating C.

ISO7821 Datasheet (1.41 MB)

Rating: 1 ★ (4 votes)

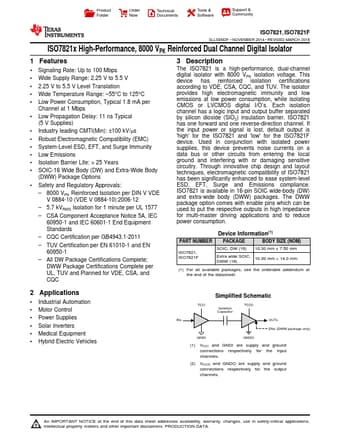

Preview of ISO7821 PDF
