ISO7820LL - Isolated Dual-LVDS Buffer

ISO7820LL Description

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community ISO7820LL, ISO7821LL SLLSET8A * MARCH 2016 *.
The ISO782xLL family of devices is a highperformance, isolated dual-LVDS buffer with 8000VPK isolation voltage.

ISO7820LL Applications

* 1 Complies with TIA/EIA-644-A LVDS Standard
* Signaling Rate: Up to 100 Mbps
* Wide Supply Range: 2.25 V to 5.5 V
* Wide Temperature Range:
* 55°C to +125°C Ambient
* Low Power Consumption, per Channel at 100 Mbps:
* Typical 9.3-mA (ISO7820LL)

📥 Download Datasheet

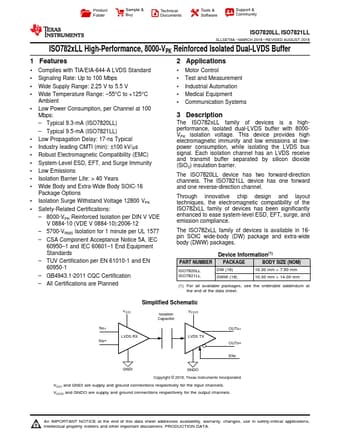

Preview of ISO7820LL PDF
datasheet Preview Page 2 datasheet Preview Page 3
