ISO7821LLS

Isolated Dual-LVDS Buffer

ISO7821LLS Features

* 2 Applications

* 1 Complies with TIA/EIA-644-A LVDS Standard

* Signaling Rate: 50 Mbps to 150 Mbps

* Optimized for DC-Balanced Data

* Wide Supply Range: 3 V to 5.5 V

* Wide Temperature Range:

* 55°C to 125°C

* Low-Power Consumption, Typical 10.

ISO7821LLS General Description

The ISO7821LLS device is a high-performance, isolated dual-LVDS buffer with 8000-VPK isolation voltage. This device provides high electromagnetic immunity and low emissions at low-power consumption, while isolating the LVDS bus signal. Each isolation channel has an LVDS receive and transmit buffer. .

ISO7821LLS Datasheet (1.75 MB)

Rating: 1 ★ (3 votes)

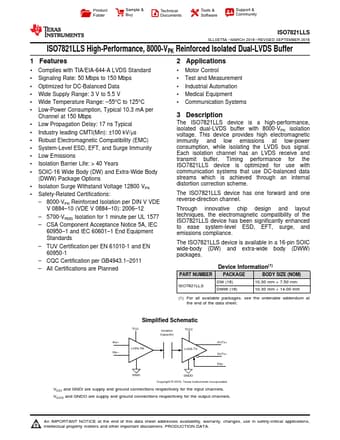

Preview of ISO7821LLS PDF

Datasheet Details

Part number:

ISO7821LLS

Manufacturer:

Texas Instruments ↗

File Size:

1.75 MB

Description:

Isolated dual-lvds buffer.
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community ISO7821LLS SLLSET5A MARCH 2016 REVISED S.
