ISO7821F, ISO7821 Datasheet - Texas Instruments

ISO7821F Dual Channel Digital Isolator

The ISO7821 is a high-performance, dual-channel digital isolator with 8000 VPK isolation voltage. This device has reinforced isolation certifications according to VDE, CSA, CQC, and TUV. The isolator provides high electromagnetic immunity and low emissions at low power consumption, while isolating C.

ISO7821F Features

* 1 Signaling Rate: Up to 100 Mbps

* Wide Supply Range: 2.25 V to 5.5 V

* 2.25 V to 5.5 V Level Translation

* Wide Temperature Range:

* 55°C to 125°C

* Low Power Consumption, Typical 1.8 mA per Channel at 1 Mbps

* Low Propagation Delay: 11 ns Typ

ISO7821-etcTI.pdf

This datasheet PDF includes multiple part numbers: ISO7821F, ISO7821. Please refer to the document for exact specifications by model.

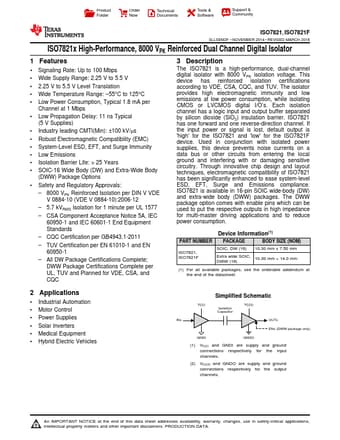

ISO7821F Datasheet Preview Page 2 ISO7821F Datasheet Preview Page 3
