ISO7820F, ISO7820 - Dual Channel Digital Isolator

ISO7820F Description

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community ISO7820, ISO7820F SLLSEP0A * JULY 2015 * REV.
The ISO7820 is a high-performance, dual-channel digital isolator with 8000 VPK isolation voltage.

ISO7820F Features

* 1 Signaling Rate: Up to 100 Mbps
* Wide Supply Range: 2.25 V to 5.5 V
* 2.25 V to 5.5 V Level Translation
* Wide Temperature Range:
* 55°C to 125°C
* Low Power Consumption, Typical 1.7 mA per Channel at 1 Mbps
* Low Propagation Delay: 11 ns Typ

ISO7820F Applications

* and to reduce power consumption. Device Information(1) PART NUMBER PACKAGE BODY SIZE (NOM) ISO7820, ISO7820F SOIC, DW (16) 10.30 mm x 7.50 mm Extra wide SOIC, DWW (16) 10.30 mm × 14.0 mm (1) For all available packages, see the orderable addendum at the end of the datasheet. spacer 2 Applic

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ISO7820F, ISO7820. Please refer to the document for exact specifications by model.

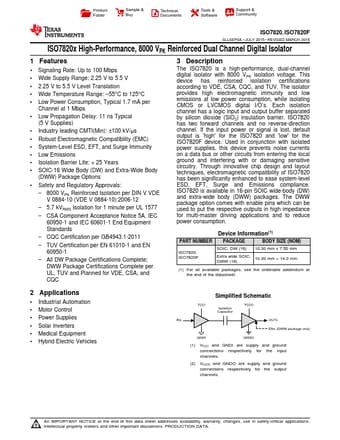

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ISO7820F, ISO7820
Manufacturer
Texas Instruments ↗
File Size
1.37 MB
Datasheet
ISO7820-etcTI.pdf
Description
Dual Channel Digital Isolator
Note
This datasheet PDF includes multiple part numbers: ISO7820F, ISO7820.
Please refer to the document for exact specifications by model.
