LM2694 Step Down Switching Regulator

LM2694 Description

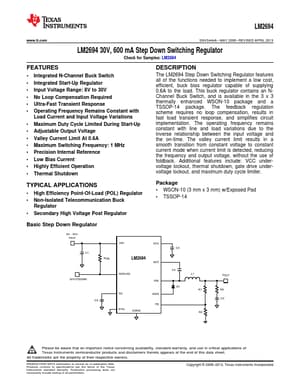

LM2694 www.ti.com SNVS444A * MAY 2006 * REVISED APRIL 2013 LM2694 30V, 600 mA Step Down Switching Regulator Check for Samples: LM26.
The LM2694 Step Down Switching Regulator features all of the functions needed to implement a low cost, efficient, buck bias regulator capable of suppl.

LM2694 Features

* 1
* 2 Integrated N-Channel Buck Switch
* Integrated Start-Up Regulator
* Input Voltage Range: 8V to 30V
* No Loop Compensation Required
* Ultra-Fast Transient Response
* Operating Frequency Remains Constant with Load Current and Input Voltage Variations

LM2694 Applications

* High Efficiency Point-Of-Load (POL) Regulator
* Non-Isolated Telecommunication Buck Regulator
* Secondary High Voltage Post Regulator Package
* WSON-10 (3 mm x 3 mm) w/Exposed Pad
* TSSOP-14 Basic Step Down Regulator 8V - 30V Input C1 SHUTDOWN VIN VCC
