LM26LV-Q1 WSON-6 Factory Preset Temperature Switch and Temperature Sensor

The LM26LV and LM26LV-Q1 are low-voltage, precision, dual-output, low-power temperature switches and temperature sensors. The temperature trip point (TTRIP) can be preset at the factory to any temperature in the range of 0°C to 150°C in 1°C increments. Built-in temperature hysteresis (THYST) keeps t.

LM26LV-Q1 Features

* 1 Low 1.6-V Operation

* Low Quiescent Current

* Latching Function: Device Can Latch the Over Temperature Condition

* Push-Pull and Open-Drain Temperature Switch Outputs

* Wide Trip Point Range of 0°C to 150°C

* Very Linear Analog VTEMP Temperature Sen

LM26LV-Q1 Datasheet (1.79 MB)

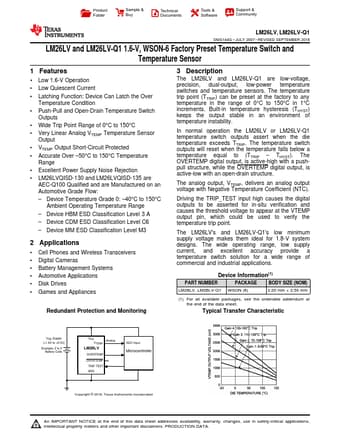

Preview of LM26LV-Q1 PDF

Datasheet Details

Part number:

LM26LV-Q1

Manufacturer:

Texas Instruments ↗

File Size:

1.79 MB

Description:

Wson-6 factory preset temperature switch and temperature sensor.
