LM27762

Low-Noise Positive and Negative Output Integrated Charge Pump Plus LDO

LM27762 Features

* 1 Generates Low-Noise Adjustable Positive Supply Voltage Between 1.5 V and 5 V and Negative Supply Voltage Between

* 1.5 V and

* 5 V

* Input Voltage Range 2.7 V to 5.5 V

* ±250-mA Output Current

* Inverting Charge Pump Followed by Negative LDO

LM27762 General Description

The LM27762 delivers very low-noise positive and negative outputs that are adjustable between ±1.5 V and ±5 V. Input-voltage range is from 2.7 V to 5.5 V, and output current goes up to ±250 mA. With an operating current of only 390 µA and 0.5-µA typical shutdown current, the LM27762 provides ideal p.

LM27762 Datasheet (1.22 MB)

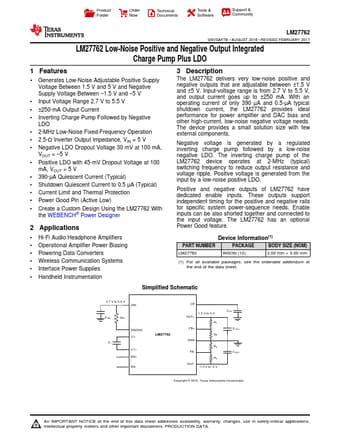

Preview of LM27762 PDF

Datasheet Details

Part number:

LM27762

Manufacturer:

Texas Instruments ↗

File Size:

1.22 MB

Description:

Low-noise positive and negative output integrated charge pump plus ldo.
Product Folder Order Now Technical Documents Tools & Software Support & Community LM27762 SNVSAF7B

* AUGUST 2016

* REVISED FEBRUA.
