LM2904, LM258 Industry-Standard Dual Operational Amplifiers

LM2904 Description

LM158, LM158A, LM258, LM258A LM2904, LM2904B, LM2904BA, LM2904V LM358, LM358A, LM358B, LM358BA SLOS068AB * JUNE 1976 * REVISED OCTOBER.
The LM358B and LM2904B devices are the next-generation versions of the industry-standard operational amplifiers (op amps) LM358 and LM2904, which incl.

LM2904 Features

* Wide supply range of 3V to 36V (B, BA versions)
* Quiescent current: 300µA/ch (B, BA versions)
* Unity-gain bandwidth of 1.2MHz (B, BA versions)
* Common-mode input voltage range includes ground, enabling direct sensing near ground
* 2mV input offset voltage

LM2904 Applications

* Merchant network and server power supply units
* Multi-function printers
* Power supplies and mobile chargers
* Motor control: AC induction, brushed DC, brushless DC, high-voltage, low-voltage, permanent magnet, and stepper motor
* Desktop PC and motherboard

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LM2904, LM258. Please refer to the document for exact specifications by model.

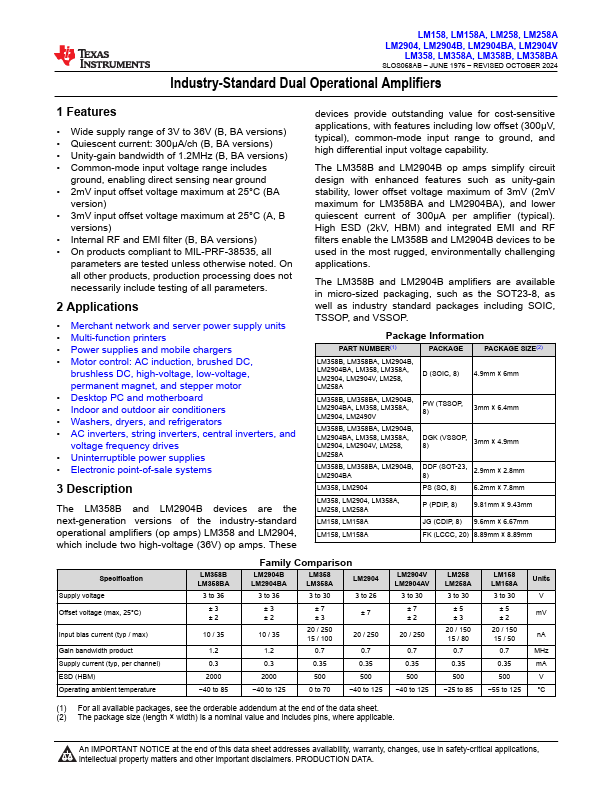

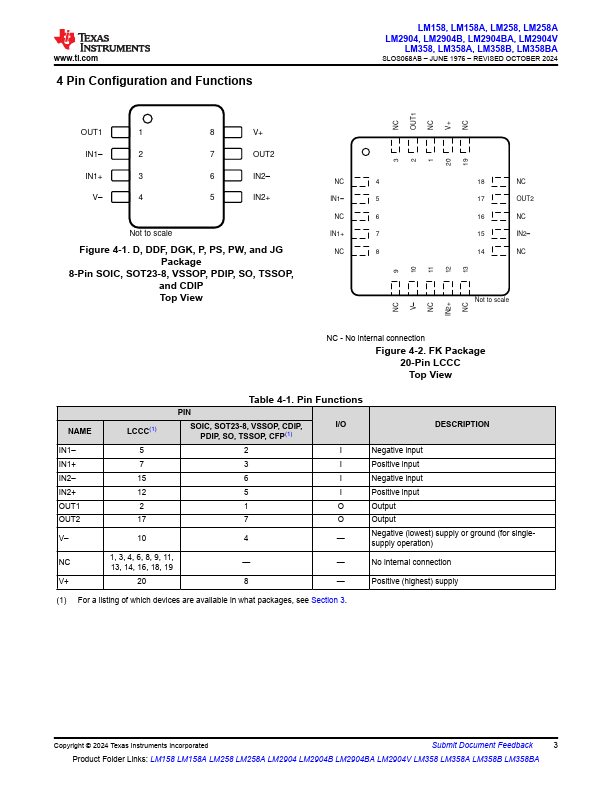

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LM2904, LM258
Manufacturer
Texas Instruments ↗
File Size
3.88 MB
Datasheet
LM258-etcTI.pdf
Description
Industry-Standard Dual Operational Amplifiers
Note
This datasheet PDF includes multiple part numbers: LM2904, LM258.
Please refer to the document for exact specifications by model.
