LM8207

TFT 18 Gamma Buffer + Driver + Voltage Reference

Texas Instruments

LM8207 Features

* 1

* 2 Gamma Buffers 1-2 Swing to VDD

* Gamma Buffers 17-18 Swing to VSS

* Large Output Current VCOM Driver (ISC = 300 mA)

* Stable (1%) Internal 1.295V Reference, to Improve Picture Quality and Reduce Variations

* 48-pin TSSOP Package APPLICATIONS

* TFT

LM8207 General Description

The LM8207 is a combination of 18-channel gamma buffers, a VCOM driver and a temperature compensated internal voltage reference. It is designed for buffering voltage levels and driving high capacitive loads in large TFT panels. The gamma buffers are individually optimized to the input/output require.

LM8207 Datasheet (1.21 MB)

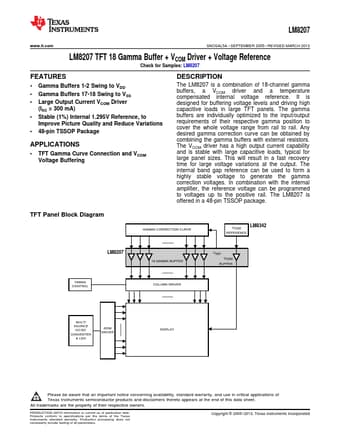

LM8207 Datasheet Preview — Preview of LM8207 PDF

Datasheet Details

Part number:

LM8207

Manufacturer:

Texas Instruments ↗

File Size:

1.21 MB

Description:

Tft 18 gamma buffer + driver + voltage reference.
LM8207 www.ti.com SNOSAL5A

* SEPTEMBER 2005

* REVISED MARCH 2013 LM8207 TFT 18 Gamma Buffer + VCOM Driver + Voltage Reference Check.
