LM810, LM809 - 3-Pin Microprocessor Reset Circuits

LM810 Description

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community LM809, LM810 SNVS052E * SEPTEMBER 1999 * REV.
The LM809 and LM810 microprocessors supervisory circuits can be used to monitor the power supplies in microprocessor and digital systems.

LM810 Features

* 1 Precision Monitoring of Supply Voltages
* Available Threshold Options: 2.63 V, 2.93 V, 3.08 V, 4.38 V, 4.63 V
* Superior Upgrade to MAX809 and MAX810
* Fully Specified Over Temperature
* 140-ms Minimum Power-On Reset Pulse Width, 240-ms Typical
* Ac

LM810 Applications

* Factory Automation
* Building Automation
* Programmable Logic Control
* Renewable Energy
* Microprocessor Systems
* Computers
* Controllers
* Intelligent Instruments
* Portable/Battery-Powered Equipment
* Automotive 3

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LM810, LM809. Please refer to the document for exact specifications by model.

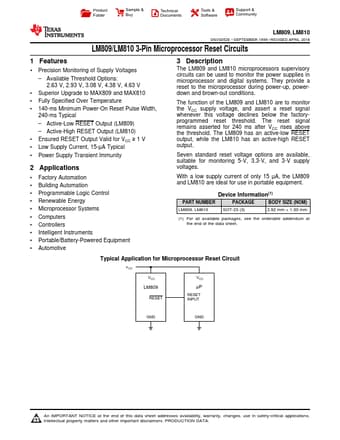

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LM810, LM809
Manufacturer
Texas Instruments ↗
File Size
856.54 KB
Datasheet
LM809-etcTI.pdf
Description
3-Pin Microprocessor Reset Circuits
Note
This datasheet PDF includes multiple part numbers: LM810, LM809.
Please refer to the document for exact specifications by model.
