LM8262 Datasheet - Texas Instruments

High Output Current and Unlimited Cap Load Op Amp

LM8262 Features

* 1(VS = 5V, TA = 25°C, Typical Values Unless Specified).

* GBWP 21MHz

* Wide Supply Voltage Range 2.5 V to 22 V

* Slew Rate 12V/µs

* Supply Current/channel 1.15 mA

* Cap Load Limit Unlimited

* Output Short Circuit Current +53mA/

* 75 mA

LM8262 General Description

The LM8262 is a Rail-to-Rail input and output Op Amp which can operate with a wide supply voltage range. This device has high output current drive, greater than Rail-to-Rail input common mode voltage range, unlimited capacitive load drive capability, and provides tested and ensured high speed and sl.

LM8262 Datasheet (571.32 KB)

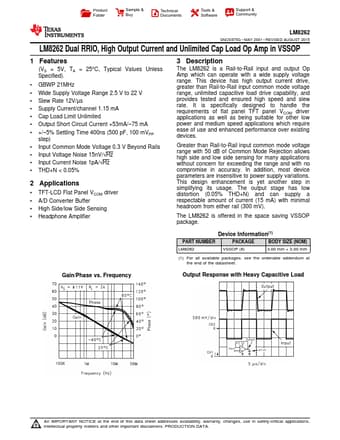

LM8262 Datasheet Preview — Preview of LM8262 PDF

Datasheet Details

Part number:

LM8262

Manufacturer:

Texas Instruments ↗

File Size:

571.32 KB

Description:

High output current and unlimited cap load op amp.
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community LM8262 SNOS975G MAY 2001 REVISED AUGUST .
