LM82

Remote Diode and Local Digital Temperature Sensor

Texas Instruments

LM82 Features

* 1

* 2 Accurately Senses Die Temperature of Remote ICs, or Diode Junctions

* On-board Local Temperature Sensing

* SMBus and I2C Compatible Interface, Supports SMBus 1.1 TIMEOUT

* Two Interrupt Outputs: INT and T_CRIT_A

* Register Readback Capability

* 7

LM82 General Description

The LM82 is a digital temperature sensor with a 2 wire serial interface that senses the voltage and thus the temperature of a remote diode using a DeltaSigma analog-to-digital converter with a digital overtemperature detector. The LM82 accurately senses its own temperature as well as the temperature.

LM82 Datasheet (1.06 MB)

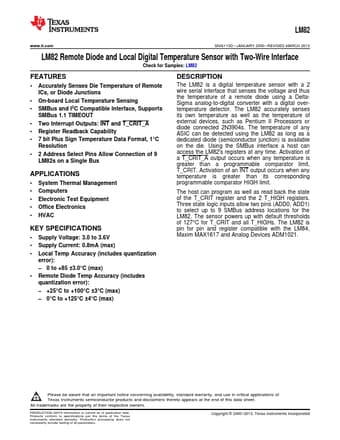

LM82 Datasheet Preview — Preview of LM82 PDF

Datasheet Details

Part number:

LM82

Manufacturer:

Texas Instruments ↗

File Size:

1.06 MB

Description:

Remote diode and local digital temperature sensor.
LM82 www.ti.com SNIS113D

* JANUARY 2000

* REVISED MARCH 2013 LM82 Remote Diode and Local Digital Temperature Sensor with Two-Wire I.
